Tecniwell Pompen

Techniwell-pompen bieden een veelvoud aan mogelijkheden. Voor meer informatie over de pomp waarin u bent geïnteresseerd, klikt u op de naam onder de foto.

TWG 11 + TWM 5

The TWG 11 + TWM 5 is a compact solution to realise Mini-Jet pile (240 bar cement injection).

This system consist of a of Grout Pumps ( TWG 11) and Mixing Units ( TWM5 ) mounted on 2 different skids.

Both units are fully electric.

Technical specifications:

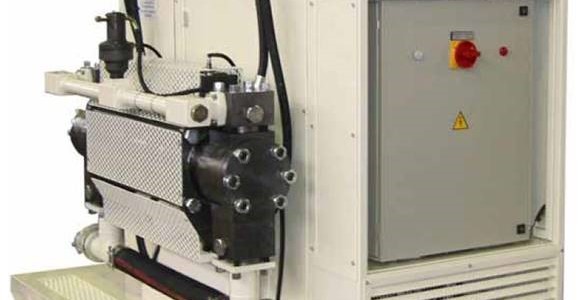

TWG 11 GROUT PUMP

Double effect piston

  • Max. flow rate : 70 lt/min
  • Max. pressure : 240 bar
  • Weight 2 000 kg

TWM 5 GROUT MIXER

  • Max. hourly mix. capacity : 5 m3
  • Mixer Tank capacity : 200 lit
  • Agitator Tank capacity : 500 lit
  • Weight 1 000 kg

Applications:

  • Foundations (Mini-jet, micro pile, anchor)
  • Micro tunnelling (delivery and injection of slurries, cavity filling)

GMP89V (VERKOCHT)

Welcome ot this new rental Tecniwell GMP89V grout plant with vertical pump of 9kW.

Injection of 90 bar and 150 L/min, electrically driver, with water tank and remote control, this unit is perfect for micropiling and anchoring jobs.

10 m³/h our mixing capacity.

GMP89V Dimensions & weight

GMP89V Mixer Technical Feat

GMP89V Pump Technical Feat

GMP89V Diagram

TW Silo 30T + 30T (VERKOCHT)

Swalmec is renting the full solution for Jet grouting jobsite :

A double 30T horizontal silo from Tecniwell on top of our mixer TWM30.

TW Silo 30T + 30T Technical Features

TWM 30

TECHNICAL DATA

  • weight: 7000 daN
  • width: 2438 mm
  • length: 6055 mm
  • height: 2591 mm
  • maximum hourly output: 30 m³

Mixer

  • capacity of the mixer tank: 2 m³
  • open wheel pump (max flow at 1 bar): 2000 liters/min
  • electric motor of the pump: 15 kW

Agitator

  • useful capacity of the agitator tank: 4 m³
  • electric motor: 2,2 kW

Water storage tank

  • capacity: 1600 liters

Compressor

  • capacity: 400 liters/min
  • air tank: 100 liters
  • electric motor: 2.2 kW

Boost pump

  • maximum flow (at 1 bar): 700 liters/min
  • electric motor: 2,2 kW

TWM 40

Voor meer informatie, klik hier

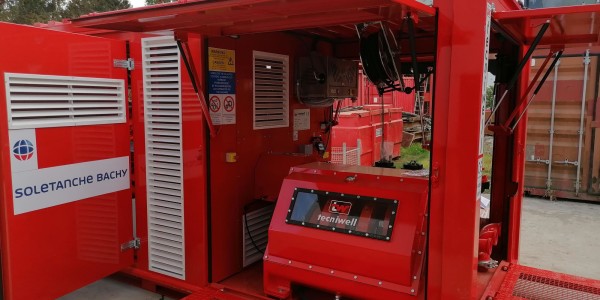

TW 800

Voor meer info, klik hier

TW Silo 1.5T

Voor meer info, klik hier
